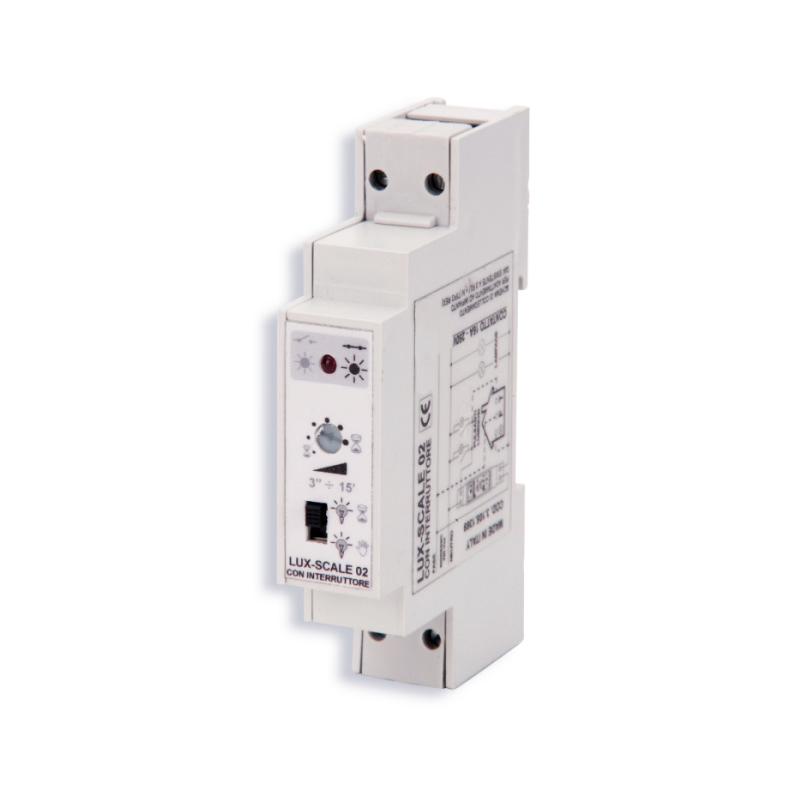

LUX Scala Timer
Staircase lighting timer in 1-module DIN rail enclosure, width 17.4 mm, for mounting on 35 mm rail (EN500022).
Adjustable time range via trimmer from 3 seconds to 15 minutes.
3-wire connection (REX-type electromechanical) plus… See more...
Staircase lighting timer in 1-module DIN rail enclosure, width 17.4 mm, for mounting on 35 mm rail (EN500022).
Adjustable time range via trimmer from 3 seconds to 15 minutes.
3-wire connection (REX-type electromechanical) plus neutral.
The control push-button is referenced to the supply neutral.
Suitable for installations with illuminated push-buttons.
Power supply: 230 V AC – 50 Hz.
Standard Specifications
Power supply: 230Vac 50-60 Hz
Relay Output: 16A
Connecting 3 wires + N (type REX)
Compensated fluorescent (230VAC): 750W
Fluorescence uncompensated (230VAC): 1000W
Halogen lamps: 2000W
Light signaling system of active pending command
Dimensions: DIN - 1 module
