BETA SE330-SE333-SE396 Gas leak detectors with replaceable sensor
BETA detectors warn the gas presence in the environment where they are installed with an optical and acoustic signal. They are equipped with an output relay for controlling a solenoid valve for intercepting gas. After t… See more...
BETA detectors warn the gas presence in the environment where they are installed with an optical and acoustic signal. They are equipped with an output relay for controlling a solenoid valve for intercepting gas.

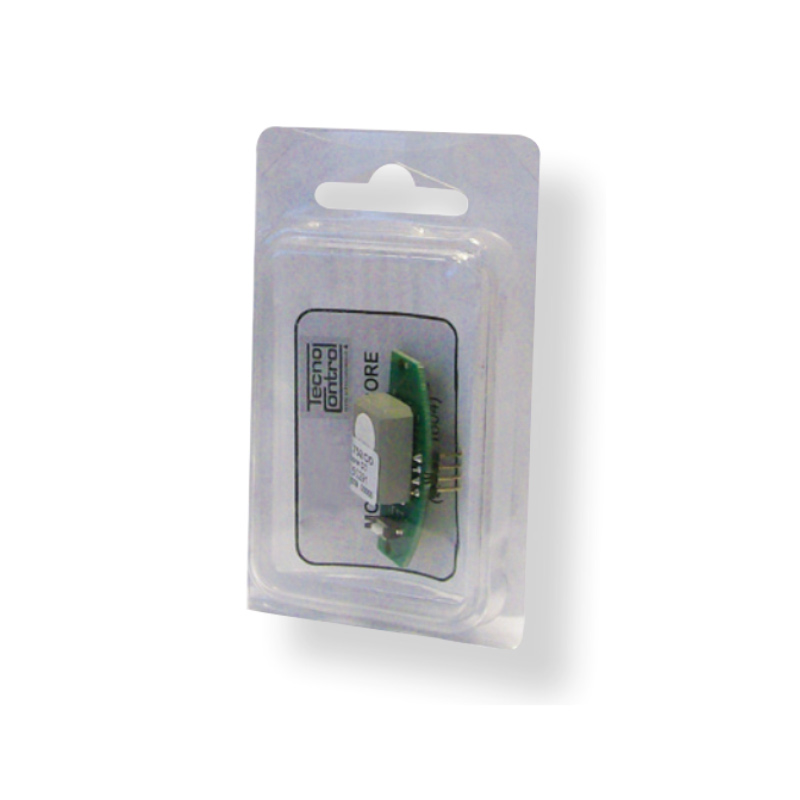

After that period, an optical signal warns to replace the sensor, simply by removing a front plate and using the sensors parts supplied in blister packs.
Standard Specifications
Standards certified: EN 50194
Power supply: 230 Vac – 50÷60 Hz and 12Vdc
Absorption: 4,5VA max (230Vac) - 2,5W (12Vdc)
Alarm level: 10% L.E.L. - Measuring range: 0÷20% LEL
Sensor: Catalytic
Alarms: optical (red led) and acoustic (buzzer 85dB/1m)
IP42
Options
Gas Detected: LPG, Methane
