LUX-DIN Twilight switch

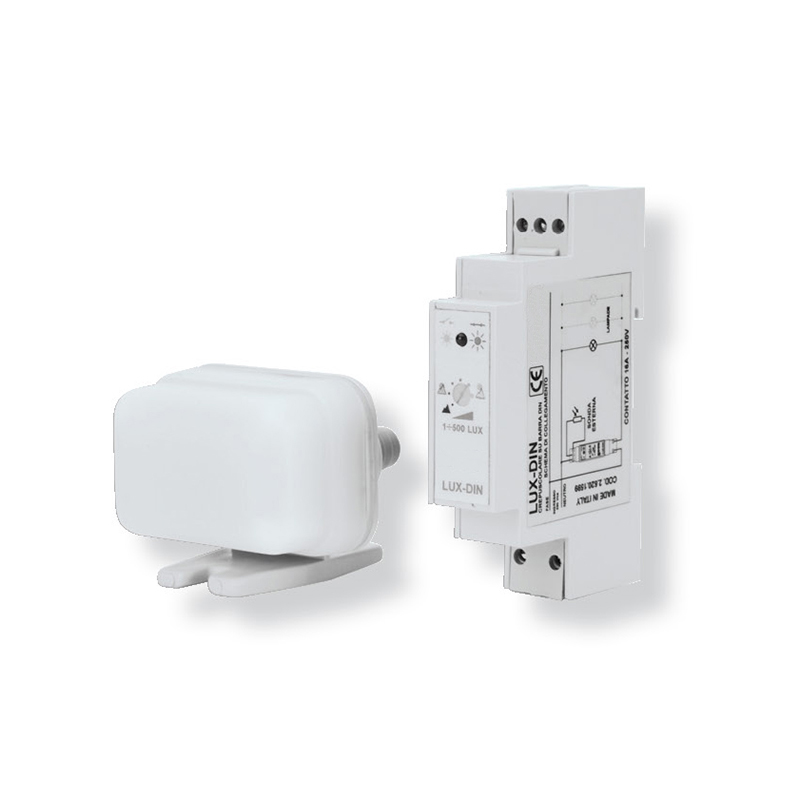

DIN-rail mounted twilight switch designed for the automatic control of lighting according to ambient light levels. The device uses an external photosensitive element and allows precise adjustment of the switching threshold from 1… See more...
DIN-rail mounted twilight switch designed for the automatic control of lighting according to ambient light levels. The device uses an external photosensitive element and allows precise adjustment of the switching threshold from 1 to 500 lux, ensuring maximum flexibility for both civil and industrial applications.
The unit is powered at 230 Vac 50–60 Hz, and the 16 A relay output enables direct control of high loads. The high IP55 protection rating makes the product suitable for installation in outdoor or harsh environments when correctly installed.
Standard Specifications
Power supply: 230 Vac 50Hz-60Hz
Relay output:16A
External light senstive sensor
Intervention sensitivity from 1 to 500 lux
Incandescent lamp (230Vac): 2000W
Corrected power factor fluorescent lamp (230Vac): 750W
No Corrected power factor fluorescent lamp (230Vac): 1000W
Halogen: 2000W
Protection degree: IP55
Dimensions: DIN rail mounted - 1 moulding - 60x60x48
