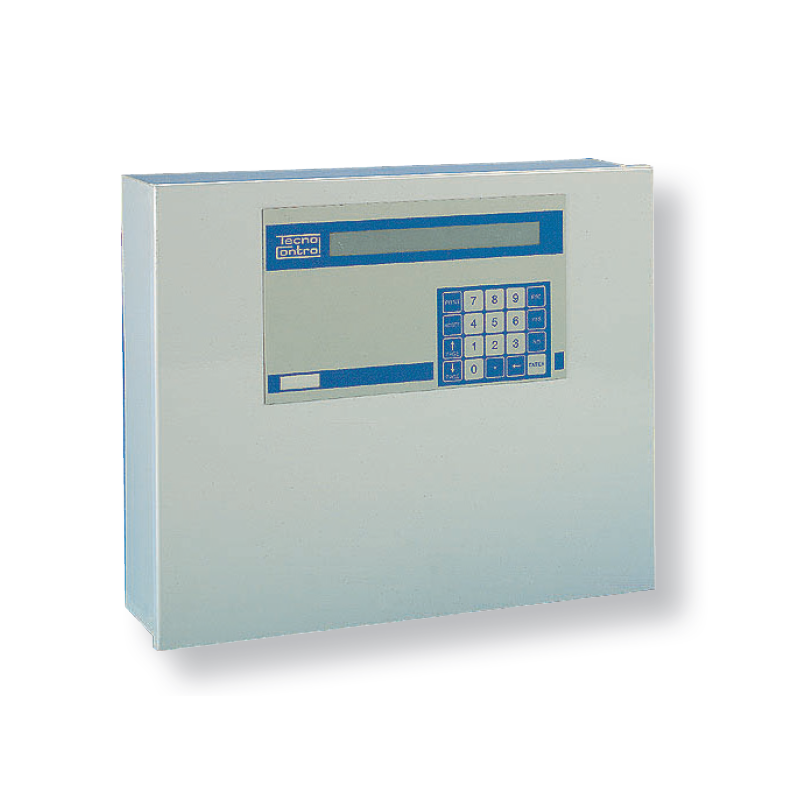

CE700 Control unit up to 200 sensors
The microprocessor central unit is usable for big industrial applications and it is arranged to operate matched with remote units type CE380UR which manage 8 sensors each. On the CE700 it is possible to connect max 23 r… See more...

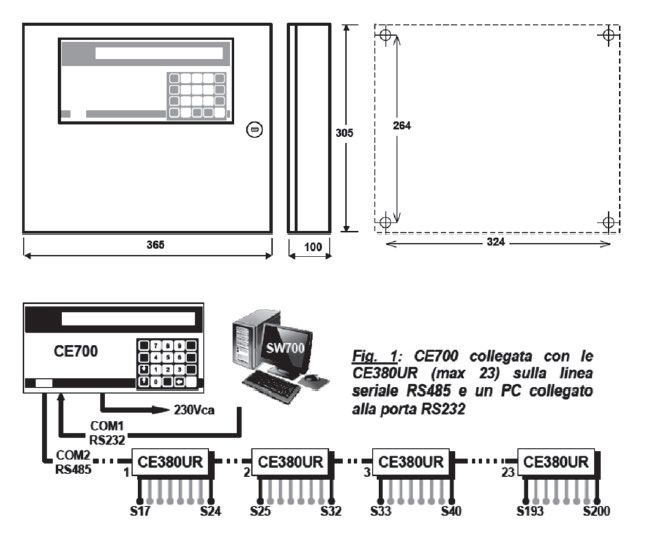

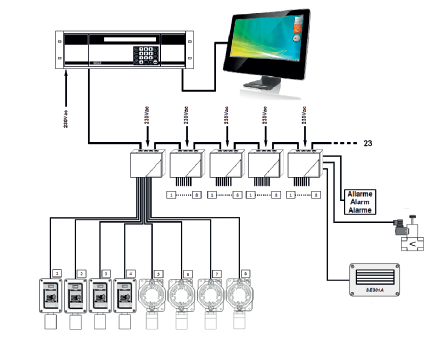

The microprocessor central unit is usable for big industrial applications and it is arranged to operate matched with remote units type CE380UR which manage 8 sensors each. On the CE700 it is possible to connect max 23 remote units for a total of 184 detectors and relays (with ES480UR boards).Considering 16 inputs and 16 relays available directly in central through specific expansion boards, the total is of 200 detectors and 200 relays available.
Standard Specifications
Power supply: 230Vac 50-60Hz
Measuring range: Programmabile
Alarm intervention: 3 programmabiles
Inputs: N° 200 max
Output: N° 200 relè max
Capacity: 3A (1A) SPDT 230Vac
IP40
Compatible to sensors Series SE and TS for toxic, inflammable gases and oxygen, also simultaneously
Serial door with MODBUS RTU protocol, with bidirectional communication for overvision
Backlit display 2 rows x 40 characters
999-event memory
Options
Available in wall or in rack versions
Available connection of a backup battery
