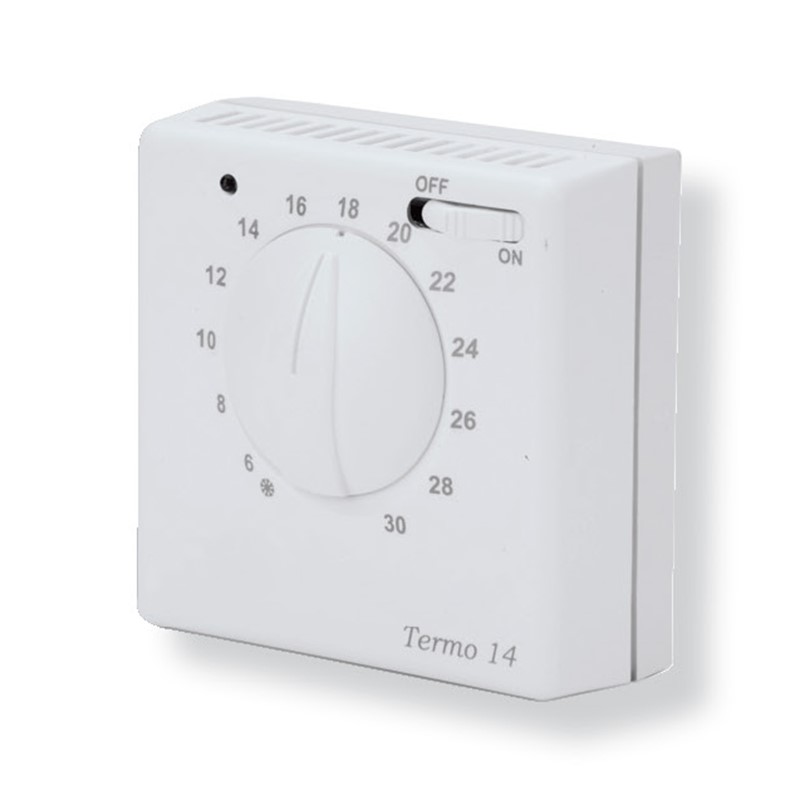

TERMO 14 Mechanical thermostats for wall installation
Simple and reliable mechanical room thermostat, ideal for regulating the desired temperature. Its operation is based on vapor pressure membrane technology, ensuring stable and accurate control, while the two-wire load connection… See more...
Simple and reliable mechanical room thermostat, ideal for regulating the desired temperature.
Its operation is based on vapor pressure membrane technology, ensuring stable and accurate control, while the two-wire load connection allows for quick and straightforward installation.
Standard Specifications
Power supply: only need the 2 wire’s charge + 230Vac for the lamp
Installation: on a wall
Specification: Single-pole thermostat with satured vapour expansion lung
Differential: ± 0,8°C
Thermal gradient: 1k/15 min.
Setting range: 5-30°C
Relay contact load: 5A, resistive load
Dimensions: 70x70x30 mm
Options
THERMO 14.1 – SPDT contact without indicator
THERMO 14.2 – SPDT contact with indicator and ON/OFF switch
THERMO 14.3 – SPDT contact with indicator
THERMO 14.4 – summer/winter changeover switch
