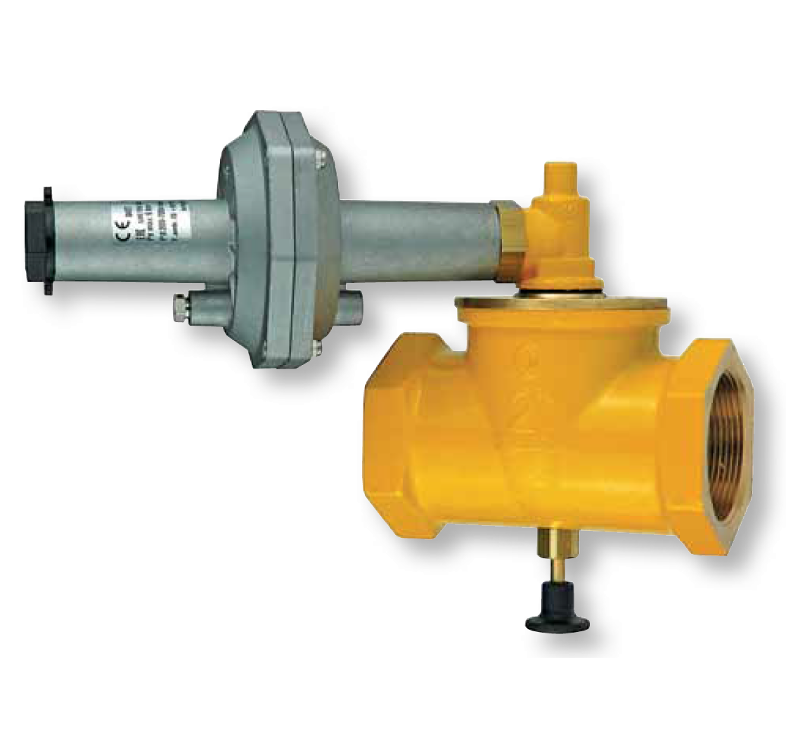

Slam Shut Off Valves up to 2”– OPSO
The SV slam shut off valves are able to automatically interrupt the gas flow. They are safety devices that perform a rapid interruption of the gas passage when the pressure reaches a set calibration value. The valve can only be r… See more...
The SV slam shut off valves are able to automatically interrupt the gas flow. They are safety devices that perform a rapid interruption of the gas passage when the pressure reaches a set calibration value. The valve can only be reopened manually.
Standard Specifications
Setting range: 60 - 700 mbar – Standard spring supplied 200 – 700 mbar
Pmax 6 bar
Closing time <1 second
Working Temperature - 15 °C / + 70 °C
Use Non – Aggressive gases – Family 1-2-3 and air
Body Brass ST-CW617N – EN 12420 – Yellow Painted
Die - Cast alluminium Gd - AISi12Cu - EN AB 46100
Die - Cast alluminium Gd - AISi12Cu - EN AB 46100
Seals NBR
Internal componentes Brass
