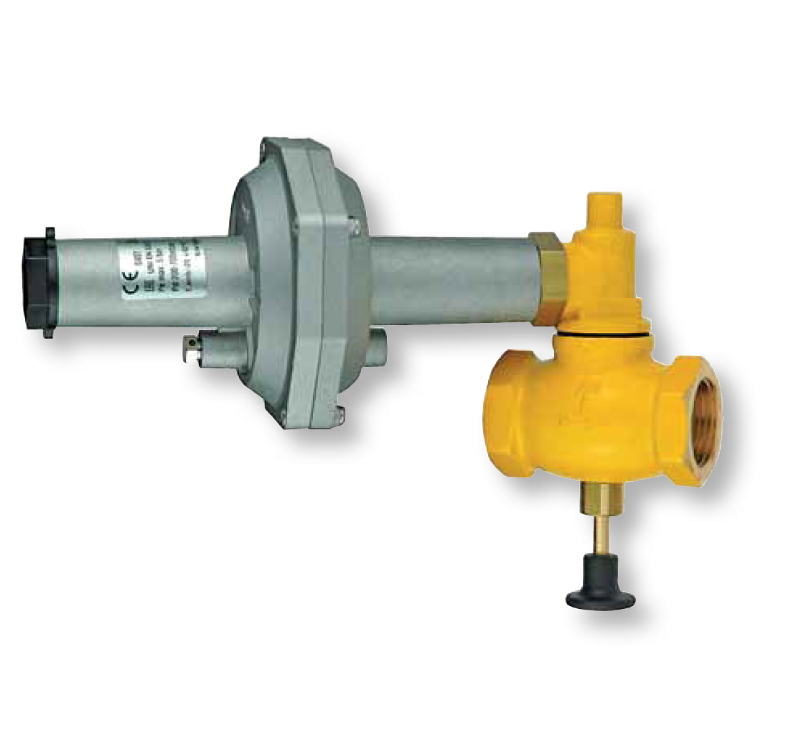

    Slam Shut Off Valves up to 1”– OPSO

    The SV slam shut off valves are able to automatically interrupt the gas flow. They are safety devices that perform a rapid interruption of the gas passage when the pressure reaches a set calibration value. The valve can only be r… See more...
    Standard Specifications
    Setting range: 60 - 700 mbar – Standard spring supplied 200 – 700 mbar
    Pmax 6 bar
    Closing time <1 second
    Working Temperature - 15 °C / + 70 °C
    Use Non – Aggressive gases – Family 1-2-3 and air
    Body Brass ST-CW617N – EN 12420 – Yellow Painted
    Die - Cast alluminium Gd - AISi12Cu - EN AB 46100
    Seals NBR
    Internal componentes Brass
    Approval PED
