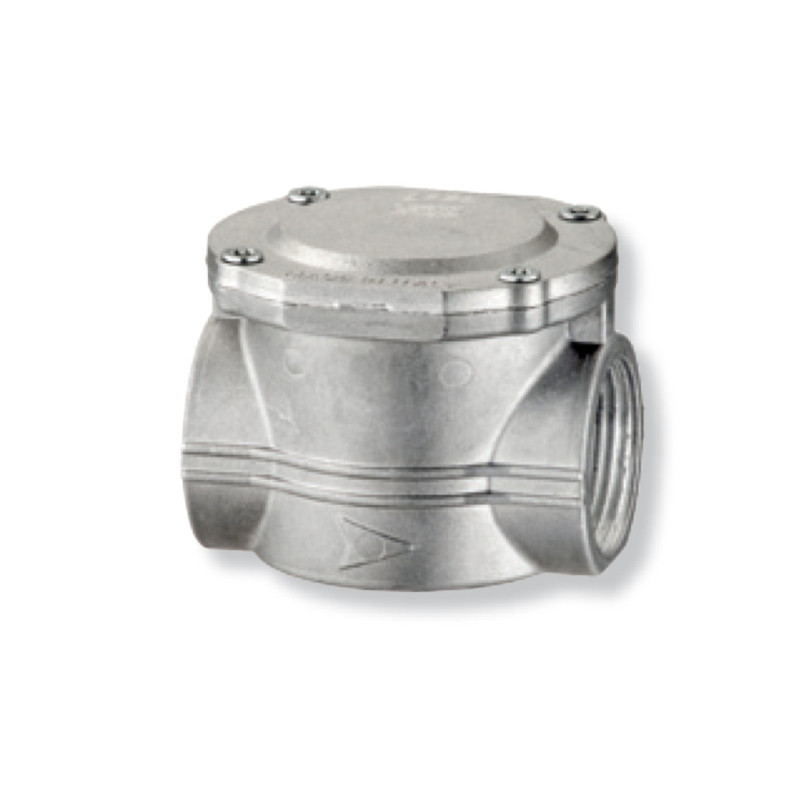

    Gas Filters up to 1” – Small capacity

    Gas filters designed in accordance with the provisions of DIN.3386 standards can be used for all the types of natural gas, LPG or not corrosive gases. These filters are widely used for protection of control devices, pressure regu… See more...
    Standard Specifications
    Operation maximum pressure 6 bar
    Filtration capacity 50µm
    Working Temperature - 20 °C – + 60 °C
    Use Non – aggressive gases – Family 1 – 2 – 3 and air - Special version for Biogas
    Cartridge Viledon
    Connection threaded 1/2" to 2" - ISO 228
    Flanged DN32 to DN150
    Body Aluminium AlSi12Cu - EN AB 46100
    Seals NBR
    Compliance: 2014/68/UE (PED) - 2016/426/UE(GAR)
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

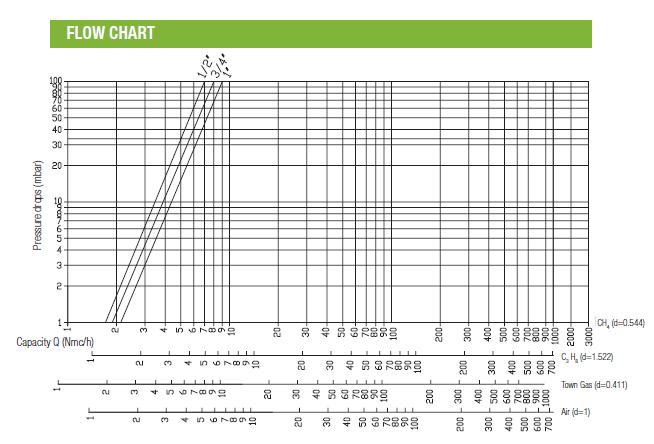

    Gas Filters Small capacity Pressure Drop table
