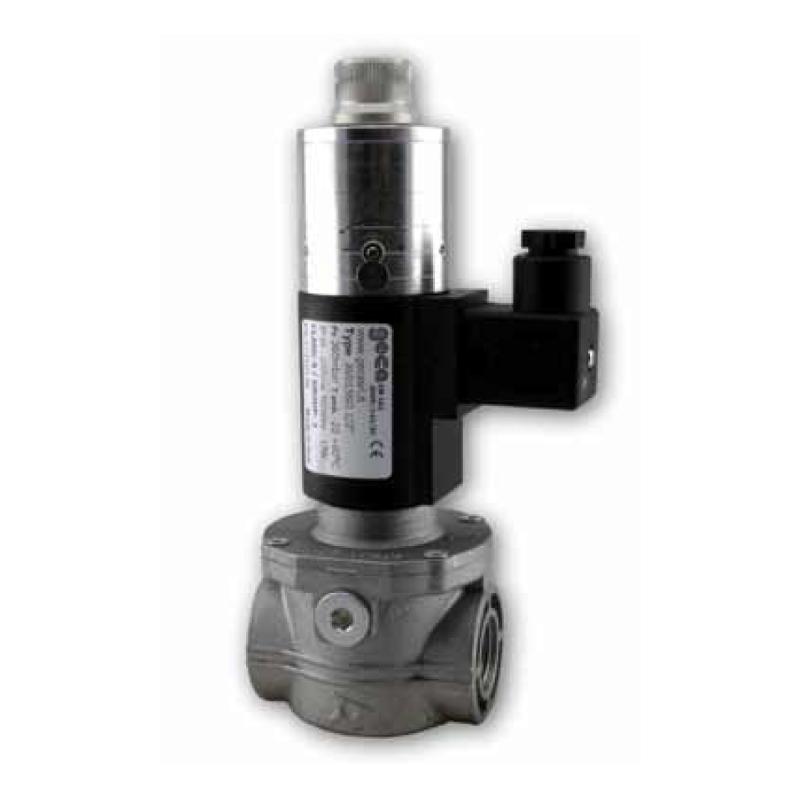

    Gas Valves Slow Opening/Fast Closing up to 1”

    Automatic gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes. Suitable for various gasses, including Natural gas, Propane and LPG Gas solenoid valve normally closed solenoid that open automa… See more...
    Standard Specifications
    Pmax 360 mbar
    Sliding Aluminium flange PN10
    Opening time Adjustable - 0,5 to 25 sec
    Closing time <1 second
    Adjustable Opening time / Rapid stroke / Flow regulation
    Incorporated AISI 303 steel mesh filter on request
    Power 15 VA Coils to class F copper wire class H
    Use Non – aggressive gases – Family 1 – 2 – 3 and air
    Test point 2 connections - options 3 connections Screw ¼”
    Working Temperature - 20 °C – 60 °C
    Approval EN161 / PED
    Protection degree IP65
    Complete Body Die – Cast Aluminium Gd – AlSi12Cu - EN AB 46100
    Options
    Supply voltage 230V (-15%+10%) 50-60Hz - 110V (-15%+10%) 50-60Hz - 24Vdc (-15%+10%) 50-60Hz
    Inlet connection - outlet Thread gas ½”- ¾” - 1” - ISO 228 DN25
    To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

    Automatic gas Valve Pressure Drop table
