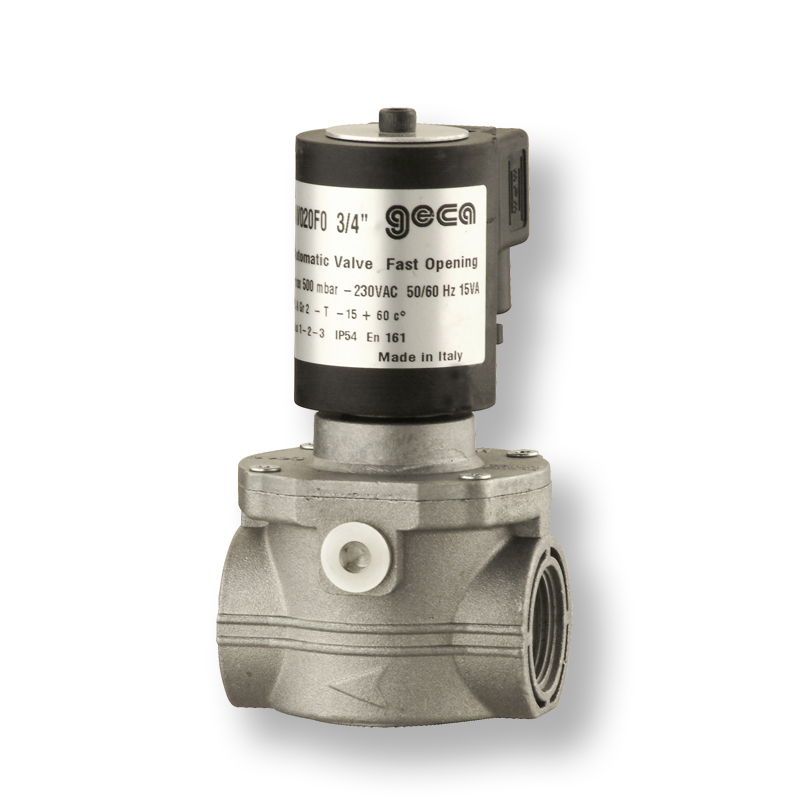

Gas Valves Fast Opening/Closing un to 1”
Automatic gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes. Suitable for various gasses, including Natural gas, Propane and LPG Gas solenoid valve normally closed solenoid that open automa… See more...
Automatic gas solenoid valves are used for safety and control of gas for shut-off in gas feed pipes.
Suitable for various gasses, including Natural gas, Propane and LPG Gas solenoid valve normally closed solenoid that open automatically when the coil is powered and close automatically when there is no tension.
Standard Specifications
Pmax 360 mbar - 6 bar
Opening time <1 second
Closing time <1 second
Max number of operations 20 per minute
Incorporated AISI 303 steel mesh filter
Supply voltage 230V (-15%+10%) 50-60Hz. 110V (-15%+10%) 50-60Hz. 24Vdc (-15%+10%) 50-60Hz
Power 15 VA - 24 VA for 6 bar version
Coils to class F copper wire class H
Use Non – aggressive gases – Family 1 – 2 – 3 and air
Test point Screw ¼" NPT
CPI On request
Working Temperature - 20 °C – 60 °C
Approval EN161
Protection degree IP65
Options
Inlet connection Thread gas ½" - ¾" - 1" ISO 228
Outlet Thread gas ½" ¾" and 1" - ISO 228
To view the video, you need to accept our Cookie Policy. If the player doesn't appear, click the link below.

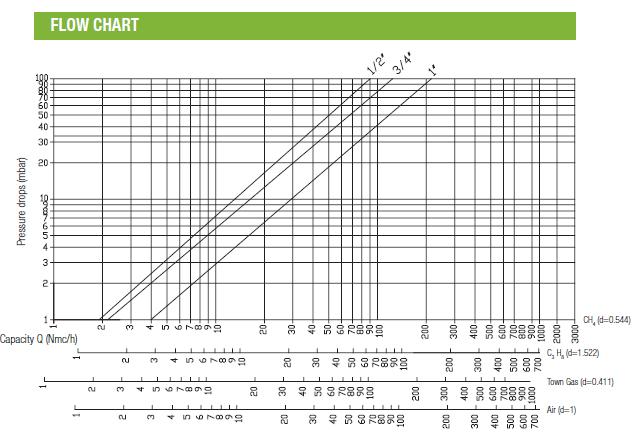

Automatic gas Valve Pressure Drop table
