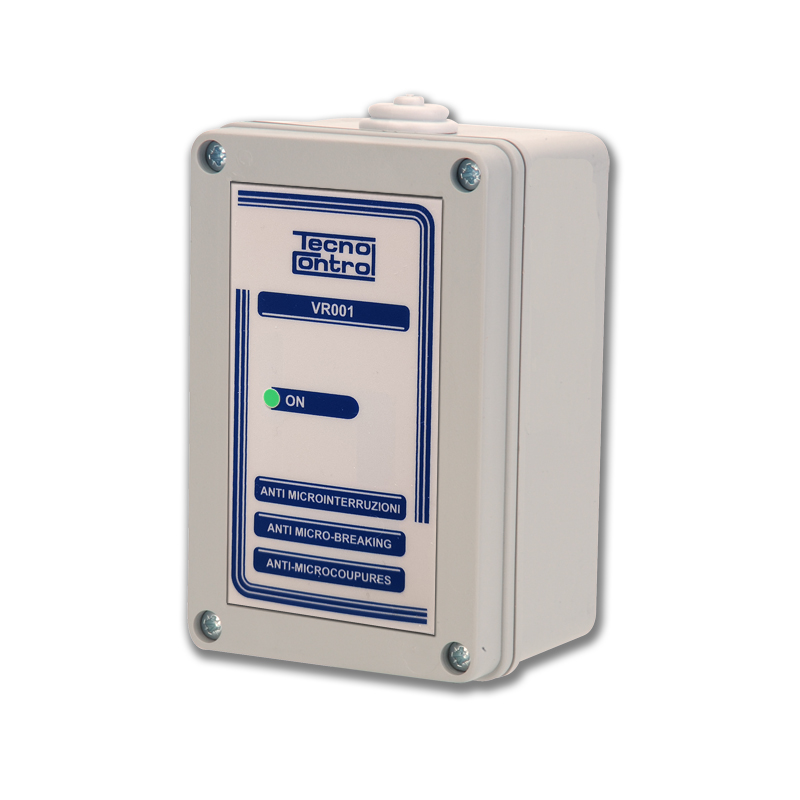

VR001 Anti-interruption
VR001 is indicated to keep the solenoid valves open in case of a micro-voltage interruption. VR001 is connected exclusively to our Normally Closed Manual Reset Solenoid Valves VR (N.C.) from 1/2" to DN200. VR001 keeps constant t… See more...
VR001 is indicated to keep the solenoid valves open in case of a micro-voltage interruption. VR001 is connected exclusively to our Normally Closed Manual Reset Solenoid Valves VR (N.C.) from 1/2" to DN200.
VR001 keeps constant the power supply of the solenoid valve connected to it in case of any voltage drop for a time ranging from 2 sec. (for solenoid valves with coils from 23W) to 3 sec. (for solenoid valve with coils from 9W).
VR001 supports a maximum load of 23W.
Standard Specifications
Power supply:230vac 50/60hz
Protection: IP65
Max output load:9W (JUMPER in pos. B > J2) 23W (JUMPER in pos. A > J1)
Resettable fuse:0,5A
Switching time:2 sec. (JUMPER in pos. A) - 3 sec. (JUMPER in pos. B)
Operating temperature::-15 somebody C +50 somebody
2 cable glands PG9
Green signal led
Dimensions:125x80x65 mm
Weight::330gr
