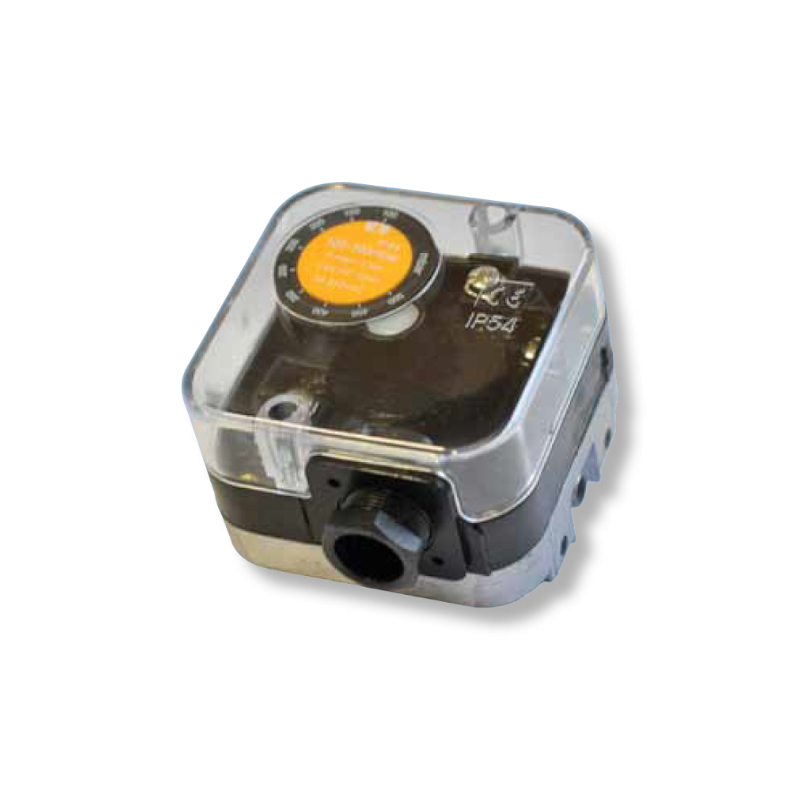

Pressure switches
Are designed for switching a circuit on, off or over if the pressure actual value changes in relation to the setpoint. See more...
Are designed for switching a circuit on, off or over if the pressure actual value changes in relation to the setpoint.
Standard Specifications
Base support Die-casted aluminium
Diaphragm NBR
Housing Brass
Switch part Polycarbonate
Electrical rating 250V ac
Pressure connection 1/4” BSP
Ambient temperature -15 ÷ +60 °C
Enclosure IP54 - IP44 (differential)
Adjustable tolerance +/- 15%
Electrical connection male fast – on 6,3 x 0,8 mm
Air connection Silicone or polyamide, polyurethane hose ø4 x ø7 or ø5 x ø8 mm
Approval CE according to EN 1854
Options
PS-PP Positive Pressure Switch
PS-PP-DP Positive and Differetial Pressure Switch
PS-DP Differential Pressure Switch
